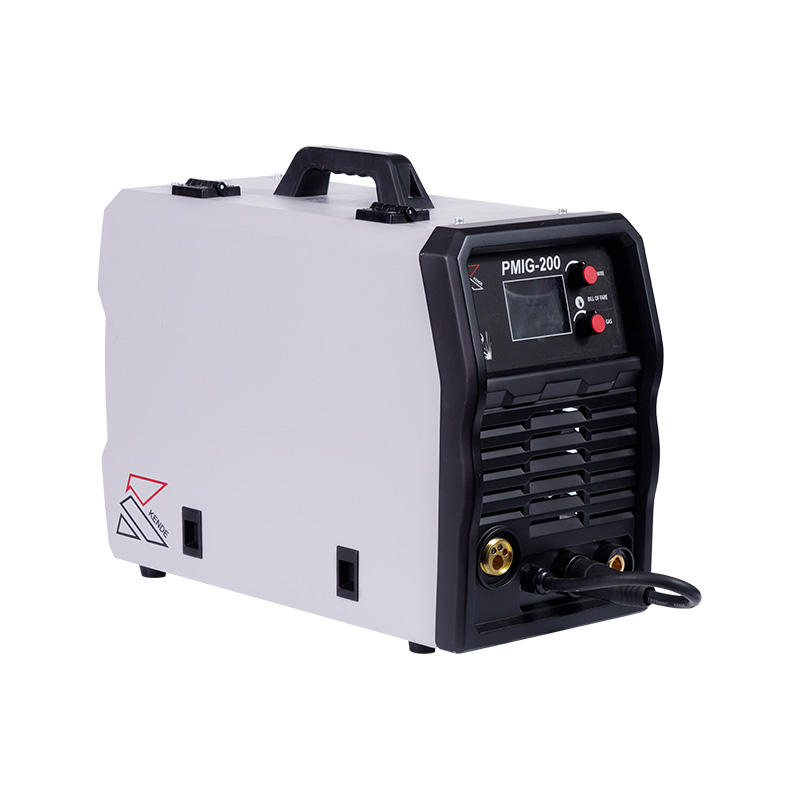

PMIG-160/200A, Full digital control. Precision control. Pulse welding without splash soldering , Can weld ordinary carbon steel, stainless steel, aluminum magnesium, aluminum silicon and other materials

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / MIG/MAG or GMAW / PMIG-160/200A, Full digital control. Precision control. Pulse welding without splash soldering , Can weld ordinary carbon steel, stainless steel, aluminum magnesium, aluminum silicon and other materials

PMIG-160/200A, Full digital control. Precision control. Pulse welding without splash soldering , Can weld ordinary carbon steel, stainless steel, aluminum magnesium, aluminum silicon and other materials

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

Technical characteristics:
• Advanced Microprocessor Control Unit (MCU) digital control and IGBT inverter technology.
• LCD Screen Display. Touch button operation. Encoder parameters adjustment, simple operation.
• Five welding processes, that are Pulse MIG, DC MIG/MAG, No gas shielded Flux wire welding (under MIG/MAG) and MMA methods can be used.
• A selection of these parameters, such as current, wire feed speed, plate thickness of the material to be welded, voltage, arc length and induction are available.
• Single knob or SYNERGIC parameters controlling under Pulse MIG/MIG/MAG/No gas shielded Flux wire welding.
• Can weld carbon steel, alloy steel, stainless steel and other materials
• The welding processes can be exactly controlled by using MCU control system, welding arc is very stable.
• Small spatter, good welding performance and high quality.
• Multiple protective measures, high reliability. strong resistance to power supply voltage changes.
• High efficiency and energy saving, small volume, light weight, easy to move and beautiful appearance.
• Single-phase 230V, 50Hz power supply.
• High current output, high duty cycle.
• With complete accessories:
 MIG torch, Electrode holder, earth clamp, welding cable, brush/hammer, protective mask.

Specifications

Rated
Supply
Voltage
Supply
Frequency
Rated
Input
Capacity
Rated
Supply
Current
No-Load
Voltage
Welding
Current
Range
Rated
Welding
Voltage
Rated
Duty
CYCLE
Usable electroad Efficiency Power
Factor
Degrees of
Protection
Class of
Insulation
Net
Weight
Machine Size
Technical Characteristics

V

Hz

KVA

A

V

A

V

%



mm

%

Cosφ

IP



kg

mm

PMIG-160 230 50 6.2 26.9 65 MIG:40-160
MMA:20-140
TIG:10-200
MIG:16-22
MMA:20.8-25.6
TIG:10.8-18
15%

MIG:0.6-1.0
MMA:1.6-3.2
TIG:1.6-4.0
85 0.9 IP21S H 13.5 530L
225W
430H
PMIG-200 230 50 8.5 38 71 MIG:30-200
MMA:20-180
TIG:10-200
MIG:15.5-24
MMA:20.8-27.2
TIG:10.4-18
15% MIG:0.6-1.2
MMA:1.6-4.0
TIG:1.6-4.0
85 0.9 IP21S H 15.5 530L
250W
430H
