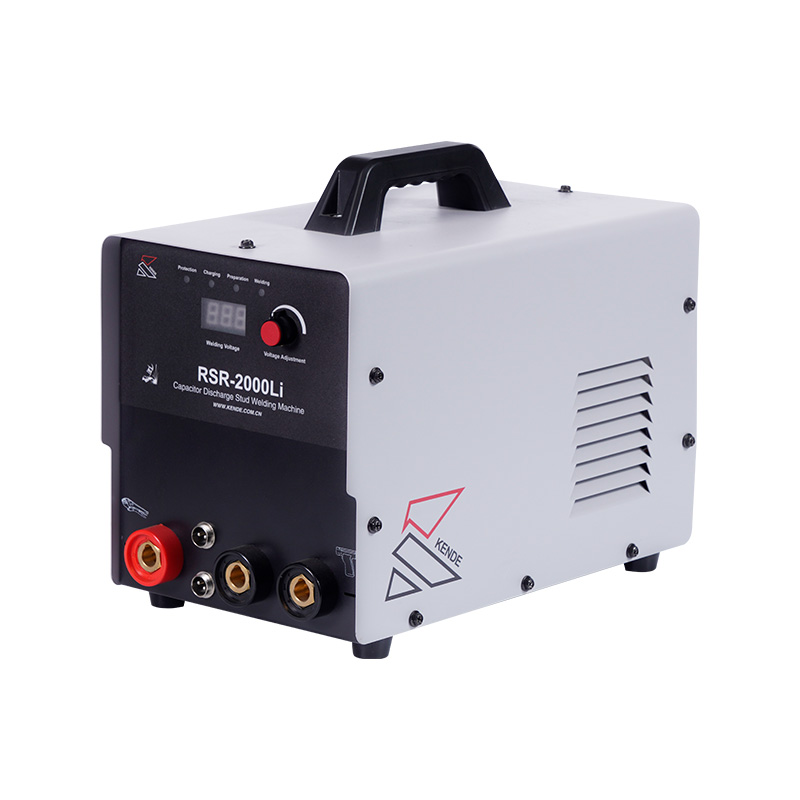

RSR-2000LI/3000LI/4000LI/5000LI Stud Welder

Zhejiang Kende Mechanical & Electrical Co., Ltd. Home / Product / SPOT Welding / RSR-2000LI/3000LI/4000LI/5000LI Stud Welder

RSR-2000LI/3000LI/4000LI/5000LI Stud Welder

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

Technical characteristics:
Adanced control technology and Current-limiting charging technology.
Mith Lithium Battery, and can be charged. Not connected to the power supply these welding machines can be used.
Two welding torch can be used, that is two operators can use the welding machine to improve the welding efficiency.
Digital voltage Display. There are protection, charging, ready and welding LED indicator lights. The voltage parameter can be adjusted, easy to operate.
The charging voltage is stable, which provides a reliable guarantee of the stable welding quality.
Charging and discharge interlock, with capacitor over-voltage protection, to ensure the safety of welding operator and equipment.
filisecond level welding time Heat Affect Zone of welding is small, so the post-welding deformation of the work-piece is very small. Suitable for welding of sheet plates.
Suitable for welding of carbon steel, stainless steel, copper, aluminum and its alloy studs, the machine can be widely used.
Good welding performance and high quality.
High efficiency, small volume, light weight, easy to move and beautiful appearance.


Model RSR-2000 RSR-3000 RSR-4000 RSR-5000
Power supply 230VAC,50/60Hz 230VAC,50/60Hz 230VAC,50/60Hz 230VAC.50/60Hz
Power capacity(VA) ≤750 ≤1000 ≤1250 ≤1500
Rated stored energy(J) 1000 1300 1600 2000
Voltage regulation range(V) 35~100 35~200 35~200 35~200
Diameter of the studs to be welded(mm) Carbon steel,stainless steel 2~4 4~6 4~8 4~8
Copper,aluminum,and their alloys 3~4 3~6 3~6 3~8
Welding production effciency(pcs/min) 12~6 10~5 12~6 10~5
Dimension(LXWXH)(mm) 453x223x230 453x223x230 453x223x230 453×223x270
Weight(Kg) 15.85 17.8 19.5 21.8
