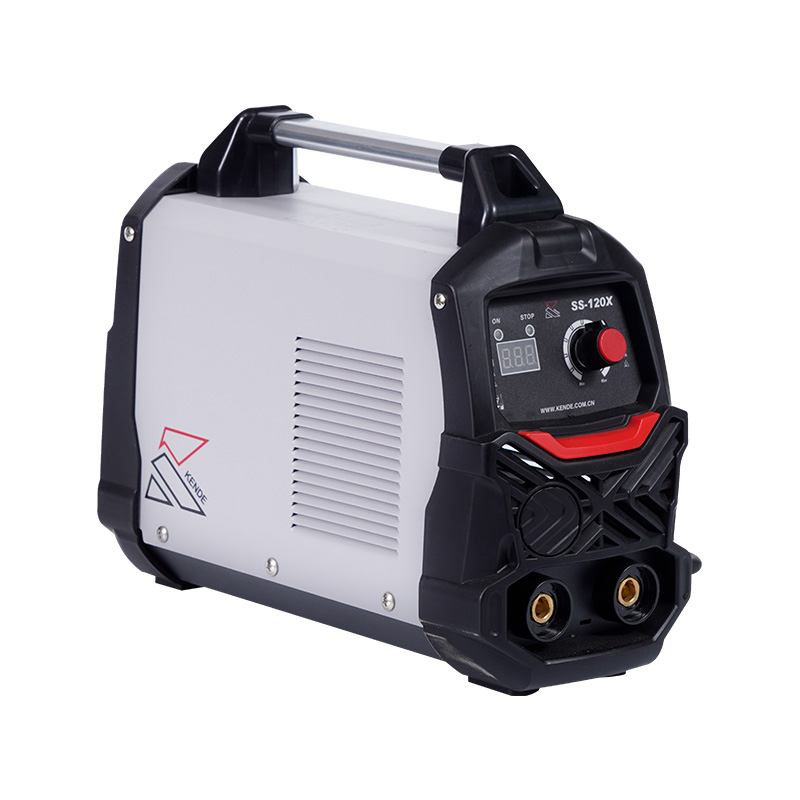

SS-120X/140X/160X/180X/200X Single Phase 220V-230V 120A/140A/180A/200A IGBT Inverter Welding machine

Inverter MMA serial own the functions: Arc Force, Hot Start, Anti Stick.
• Hot Start lets you start welds easily
• ARC Force monitors the voltage and provides additional current when needed
• Anti-stick technology allows the user to easily separate the electrodes from the workpiece
• IGBT technology. Powerful, innovative solution that sets new standards in welding technology
• Strong ability of the anti-fluctuating of power supply voltage
• Excellent arc characteristics, good welding performance and little spatter.
• Stick welding and simple TIG welding. DC-LIFT Arc Start method is used.
• With complete accessories:
 Electrode holder, earth clamp, welding cable, brush/hammer, protective mask.

CONTACT US Zhejiang Kende Mechanical & Electrical Co., Ltd.

Technical Characteristics

• Innovative inverter technology for better welded joints than with conventional units
• Homogeneous joining of steel, stainless steel and cast materials
• Electronically controlled, smooth and even welding arc
With higher tolerance for positional changes - arc remains stable longer
• welding cable with electrode holder (for Ø 1.6-5.0 mm)
• earth cable with strong clamp
• Suitable for all common stainless steel, cast iron and basic stick electrodes
• Low weight - ideal for mobile use
• Overload protection by thermal cut-out with control lamp
• Powder-coated metal housing with adjustable carrying handle.
• Integrated fan

Specifications

Rated
Supply
Voltage
Supply
Frequency
Rated
Input
Capacity
Rated
Supply
Current
No-Load
Voltage
Welding
Current
Range
Rated
Welding
Voltage
Rated
Duty
CYCLE
Usable electroad Efficiency Power
Factor
Degrees of
Protection
Class of
Insulation
Net
Weight
Machine Size
Technical Characteristics

V

Hz

KVA

A

V

A

V

%



mm

%

Cosφ

IP



kg

mm

SS-120X 230 50/60 5.8 25.2 70 20-120 24.8 30%

1.6-2.5 85 0.9 IP21S H 3.65 325L
140W
255H
SS-140X 230 50/60 6.5 28.4 70 10-140 25.6 25% 1.6-3.2 85 0.9 IP21S H 4.2 325L
140W
255H
SS-160X 230 50/60 7.7 33.5 70 10-160 26.4 20% 1.6-4.0 85 0.9 IP21S H 4.3 325L
140W
255H
SS-180X 230 50/60 8 34.5 62 20-180 27.2 15% 1.6-4.0 85 0.9 IP21S H 5.5 415L
180W
315H
SS-200X 230 50/60 9 39.5 62 20-200 28 15% 1.6-55.0 85 0.9 IP21S H 5.6 415L
180W
315H
